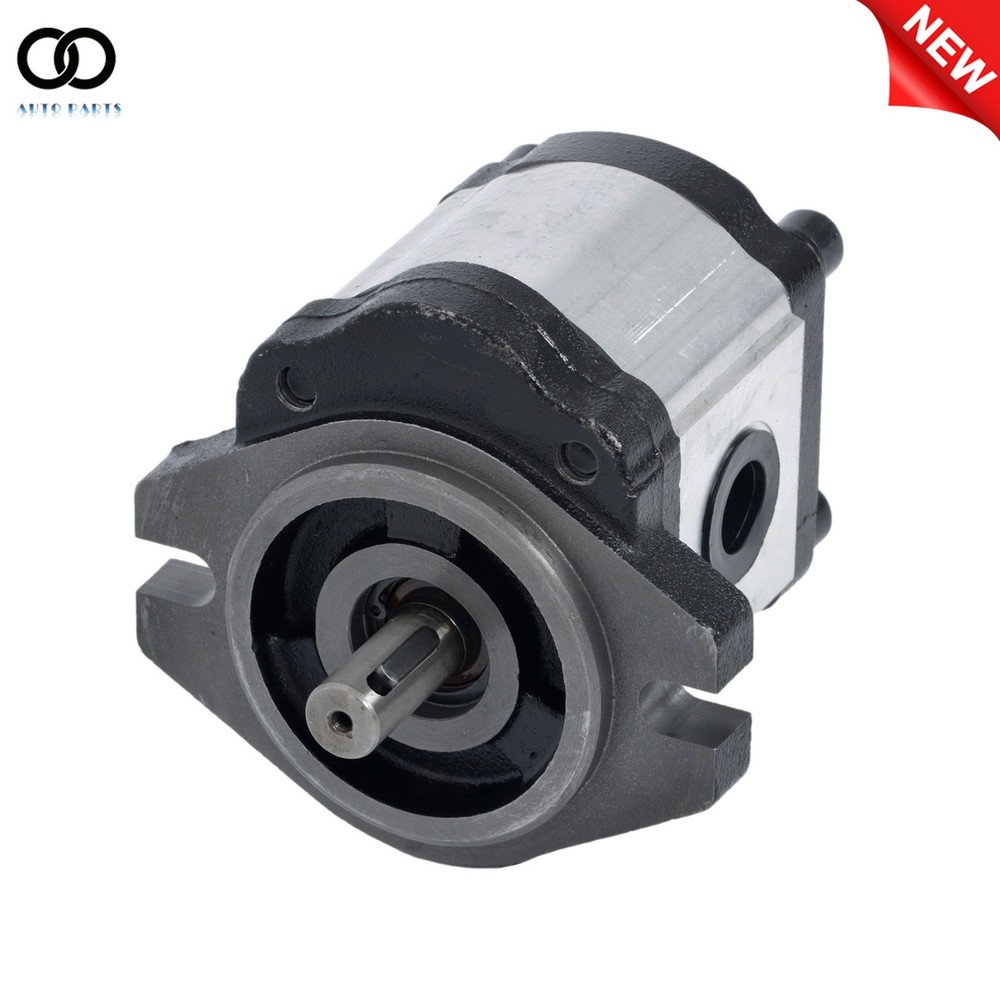

5/8″ Keyed Shaft,Hydraulic Gear Pump 1-4 GPM SAE A-2 Bolts CCW Cast Iron Flange

5/8″ Keyed Shaft,Hydraulic Gear Pump 1-4 GPM SAE A-2 Bolts CCW Cast Iron Flange

USD 105.41 USD

SKU: UCekttNe

Brand: autoooparts

MPN: APO315144

GTIN: Does not apply

Condition: New

Tags: 0.27 Cubic Inches 1 Year 3600 psi (250 bar) 5-8 GPM 5/8" Straight Keyed APO315144 autoooparts Counter Clockwise Hydraulic Hydraulic Gear Pump Manual SAE 10 SAE 12 United States

Categories: Heavy Equipment, Parts & Attachments

Specifications

Country Of Origin	United States
Brand	autoooparts
MPN	APO315144
Displacement	0.27 Cubic Inches
Pump Action	Counter-Clockwise
Rated Pressure	3600 psi (250 bar)
Hydraulic Pump Type	Hydraulic Gear Pump
Power Source	Manual
Type	Hydraulic
Shaft Type	5/8" Straight Keyed
Outlet Port	SAE 10
Inlet Port	SAE 12
Warranty	1 Year

Specification: Displacement: 0.27 Cubic Inches Shaft Type: 5/8" Straight Keyed Mounting Flange: SAE A-2 Bolts Outlet Port: SAE 10 Inlet Port: SAE 12 MAX Working Pressure: 3200 PSI Peak Pressure: 3900 PSI Direction: Counter-Clockwise (Left) 1 - 4 GPM MAX Speed: 4000 RPM MIN Speed: 700 RPM Cast Iron Body and Mounting Flange Weight: 8 LBS Description: Hydraulics are manufactured with a thru-bolt design; the Mounting flange and rear cover are made of cast iron; SAE A-2 mounting flange; This gear pump has high operational and strength specs. The seals installed reduce the fluid's internal flow and help achieve high volumetric efficiency. .
