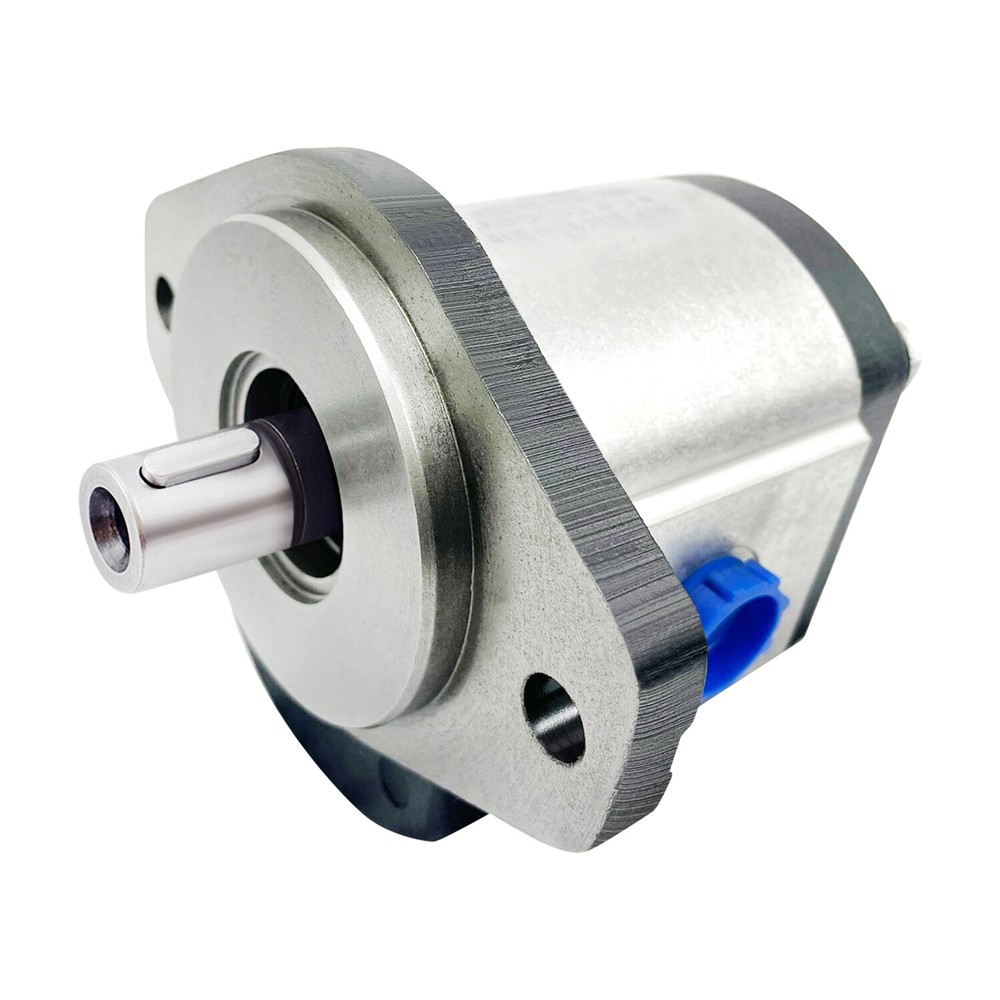

Hydraulic Gear Pump 1.40 CID 5-18 GPM 7/8″ Keyed Shaft SAE B-2 Bolts CW
USD 207.90 USD
Specifications
| MPN | HGP CI78K-B02-140R |
| Rated Pressure | 3200 psi (220 bar) |
| Inlet Port Diameter | SAE 12 |
| Power Source | Manual |
| Hydraulic Pump Type | Hydraulic Gear Pump |
| Brand | Magister Hydraulics |
| Outlet Port Diameter | SAE 10 |
| Type | Hydraulic |
| Country/Region Of Manufacture | Bulgaria |
Hydraulic Gear Pump 1.44 CID 5-18 GPM 7/8" Keyed Shaft SAE B-2 Bolts CW ---Displacement - 1.4 Cubic Inches ---Shaft Type - 7/8" Straight Keyed ---Mounting Flange - SAE B-2 Bolts ---Outlet Port - SAE 10 ---Inlet Port - SAE 12 ---MAX Working Pressure - 3200 PSI ---Peak Pressure - 3900 PSI ---Direction - Clockwise (Right) ---5 - 18 GPM ---GPM @ 2000 RPM - 12.12 ---MAX Speed - 3000 RPM ---MIN Speed - 700 RPM ---Aluminium Body and Cast Iron Cover ---Weight - 12 LBS ---1-year Manufacturer Warranty ---For more details please check the drawing.
