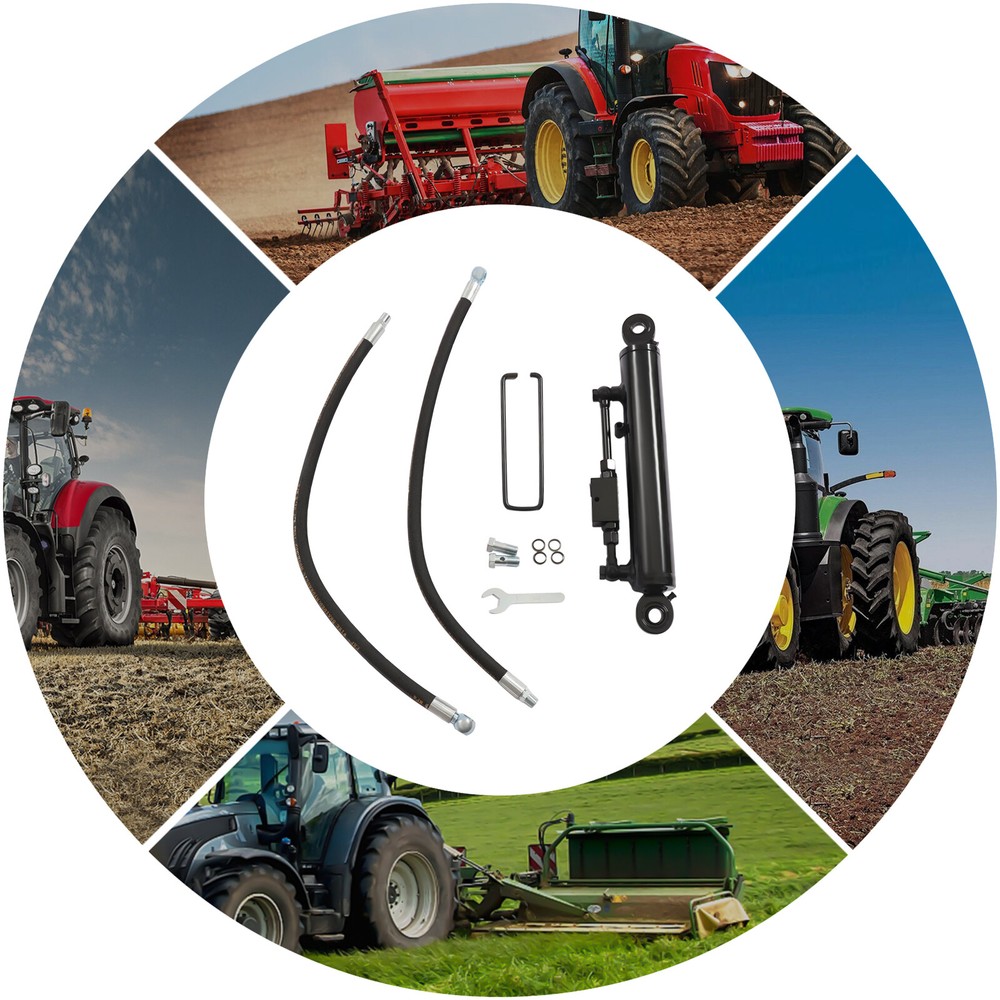

Hydraulic Top Link Cat 2-2 with Locking Block 9 11/16-28” with 2x Hose Black US
Specifications
| Country Of Origin | Unknown |
| Material | Steel |
| Color | Black |
| Process | Polishing and Welding |
| Surface Treatment | Painting |
| Pull Force | 2.5t/5511lbs |
| Thrust Force | 3.5t/7716lbs |
| Model | 19 11/16-28'' |
| Stroke | 21cm/8.26in |
| Bore Diameter | 6.3/7.6cm(2.48/2.99in) |
| Rod Diameter | 3.5cm/1.37in |
| Joint Bearing Width | 6.4cm/2.51in |
| Joint Bearing Thickness | 2cm/0.78in |
| Pin Diameter | 2.5cm/0.98in |
| Max. Length | 71cm/27.95in |
| Min. Length | 50cm/19in |
| Port Size | M14*1.5 |
| Hydraulic Cylinder Work Pressure Max | 20Mpa |
| Double Pilot Check Valve Port Size | G3/8 |
| Double Pilot Check Valve Press Max | 30Mpa |
| Double Pilot Check Valve Flow Max | 12L/min |
| Hydraulic Oil Hose Length | 75cm/29.52in |
| Hydraulic Oil Hose Port Size | G3/8*19 |
| Brand | SENDERPICK |
Hydraulic Top Link Cat. 2-2 with Locking Block 19 11/16- 28” with 2 x Hose Description This double-acting hydraulic cylinder converts the input hydraulic pressure energy into the mechanical energy of the piston's linear motion, thus providing strong pull and thrust for all types of mobile equipment. Its compact shape provides stable performance in compact devices. Through the welding and polishing process, the fixation is more durable, and it is also an ideal choice for applications in harsh environments. Key Features Strong and Durable: It is made of high-quality steel, with a painted finish, which is solid, wear-resistant, rust-proof, and corrosion-resistant, ensuring a long service life. Complete Accessories: In addition to the double-acting hydraulic cylinder, the package.
