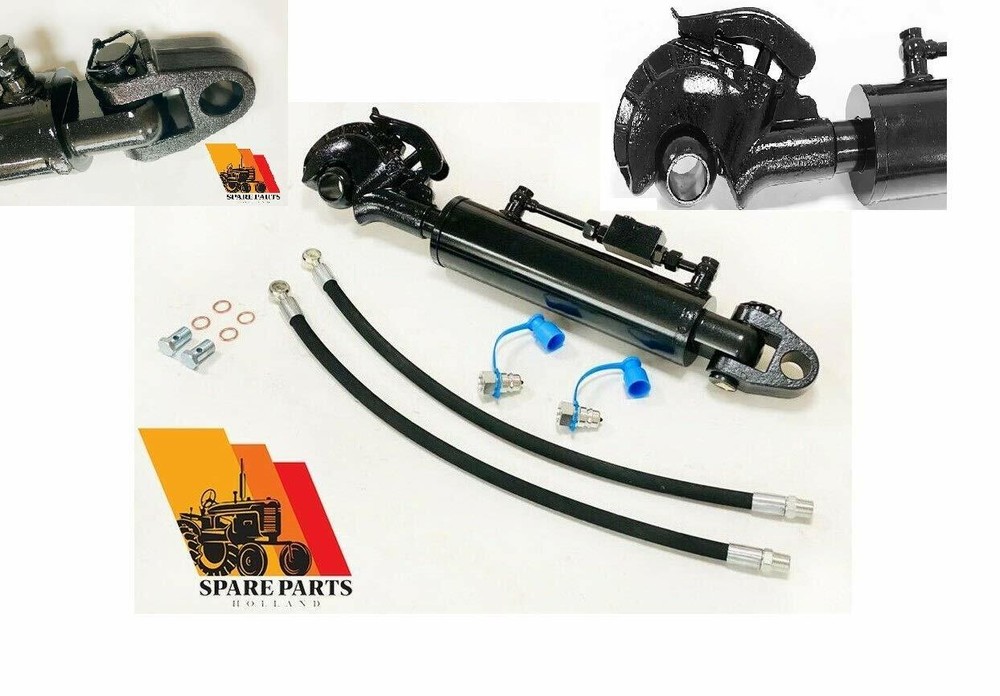

Hydraulic top link cat.3-3 stroke 280 mm with Ball Joint & Hook , Heavy Duty
Specifications
| Return Shipping Will Be Paid By | Seller |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Brand | Sparepartholland |
| Compatible Equipment Type | Tractor |
| Compatible Equipment Make | Case |
| MPN | all |
| Country/Region Of Manufacture | Turkey |
| Part Type | Hydraulics |
Hydraulic top link cat.3-3 stroke 280 mm with Ball Joint & Hook , Heavy Duty Description: The hydraulic top link we offer replaces the existing top link on the tractor and makes your daily work easier. A double-acting control valve on the tractor is necessary for this - an unbeatable combination in combination with the integrated locking block *. * When adjusting the upper link, it is very important that the adjusted position is maintained even after a long period of time. This is hardly possible with top links without a locking block, as the tractor's control units do not lock so tightly. This top link is therefore equipped with a locking block. With this valve, the oil is enclosed in the cylinder by a check valve. Only when there is oil pressure from the tractor again does the valve open and the cylinder can be adjusted. Furnishing: High quality and workmanship and paintedIncl. Locking blockTop link cat. 32x hydraulic connectionDelivery is completely assembled Technical specifications: Hydraulic connection: 3/8 "BSPMin/Max: 700-980 mmD: 280 mm (stroke)Thrust: 11700 toPulling force: 8770 toWeight about 23.65 kg + 2 x hydraulic hose with Quick Coupler (1/2") and dust cover Technical specifications: Connection: 12-L bulkhead size 3 (usual coupling connector), 18-1.5 SW22 nipple + unionHose designation Blue Flex SAE 100 3/8 R2AT DIN EN 853 2SN DN10 W.P.330Operating pressure: 180 barHoses Length: 75 cm App.
